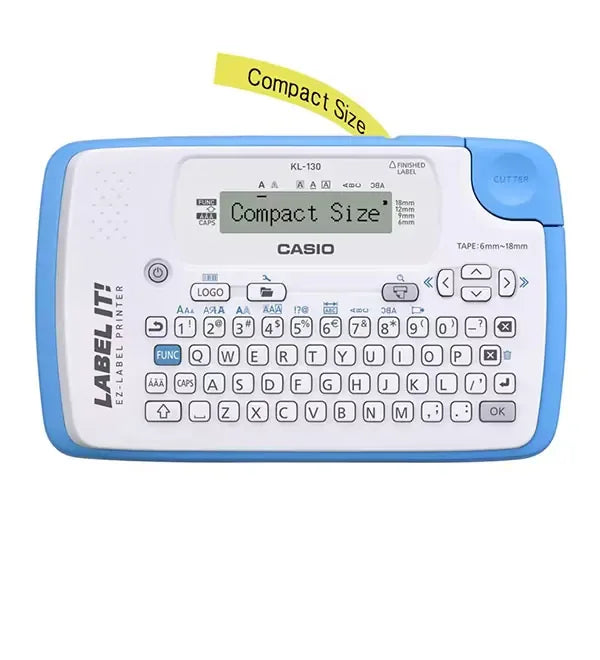

KL-130

LABEL PRINTER DESCRIPTION

• Specifications
  Basic Information
  Compatible tape widths (mm)
  6mm
  9mm
  12mm
  18mm
  Maximum print width (mm)
  12mm
  Maximum printed lines
  3
  Print resolution (dpi)
  200 dpi/96 dots
  Liquid crystal display size (number of characters)
  12 digits x 1 line
  LCD size
  96 x 16 dots
  Keyboard layout
  QWERTY
  Switchable display language
  8 languages(English / Spanish / German / French / Italian / Swedidh / Portuguese / Indonesian)
  Fonts
  Sans-serif, Sans-serif rounded, Roman
  Power supply (guideline battery consumption)
  AC adaptor AD-A95100 (optional) or 6 x AA-size alkaline (LR6) batteries (sold separately)
  Approximate battery life (continuous printing): 4 rolls
  Dimensions: W × D × H (mm)
  54.5 x 189 x 115 mm (the height dimension includes the feet)
  Weight (not including batteries)
  430g (not including batteries)
  Accessories
  Tape cartridge 12mm x 1

Features

Available tape widths

*Max. print height

Prints up to 3 lines (18 mm tape)

8 installed fonts

Sans-serif

Sans-serif Rounded

Roman

Courier

Pop

Slab Serif

Bordeaux Heavy

Cursive

Barcode printing for your business

• EAN-13/EAN-8
• UPC-A/UPC-E
• ITF
• CODE39
• CODABAR (NW-7)



TECHNICAL DETAILS

• Label Creation
  Double print speed
  6mm/sec
  Simultaneous portrait and landscape printing
  Horizontal/Vertical
  Direct tape length setting
  cm/inchesExpressiveness
  Emoji and symbols (types)
  111
  Barcode/QR code printing
  Yes
  Design logos (types)
  60

SIZE OF LABEL PRINTER / TOTAL WEIGHT

• Dimensions: W × D × H (mm)
  54.5 x 189 x 115 mm (the height dimension includes the feet)
  Weight (not including batteries)
  430g (not including batteries)
